Knight on chessboard

Difficulty: Hard

Asked in: Amazon, Goldman Sachs

Understanding The Problem

Problem Description

Given a square chessboard of A x B size, the position of Knight (C, D) and the position of a target (E, F) is given. Write a program to find out the minimum steps a Knight will take to reach the target position.

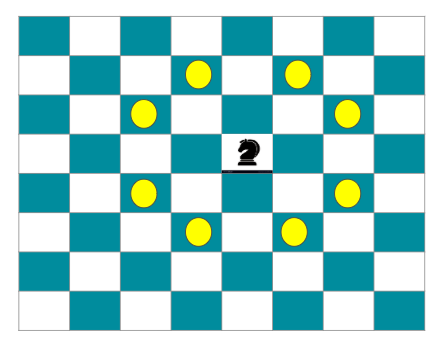

• The above figure describes the movements for a knight (8 possibilities).
• If the knight can not move from the source point to the destination point, then return -1.
• A knight cannot go out of the board.

Input Format

Following is the description of the parameters of the function “knight()”:

int A and int B: denotes the size of the chessboard
int C and int D: denotes the position of the Knight
int E and int F: denotes the target of the Knight

Example

Input: A = 6, B = 6, C = 1, D = 1, E = 4, F = 5
Output: 3
Explanation: The size of the chessboard is 6x6, the knight is initially at (1, 1) and the knight wants to reach position (4, 5).
The minimum number of moves required for this is 3. (1,1)->(3,2)->(5,3)->(4,5)

Solution

This problem can be solved by BFS(Breadth-First Search) algorithm.

If you have played chess then you know that a knight moves two squares vertically and one square horizontally, or two squares horizontally and one square vertically (with both forming the shape of an L).

The problem asked us to find the least number of moves to move the knight from position [C,D] to position [E,F] . Let’s imagine the chessboard as a graph where each square of the chessboard[x,y] is a vertex and the edges can be one legal move of the knight. The below image is showing how it will look if you consider the chessboard as a graph.

Now, we have considered it as a graph, we can use the BFS algorithm to find the shortest path from square [C,D] to square [E,F] .

So, starting from the initial position we will try to make all 8 legal moves. If the reachable position is not already visited and is inside the board, we enqueue this state into a queue with a number of moves of 1 more than its parent state. If the current location is not the target location, then we can pop it from the queue and will enqueue the possible legal moves from that location.

Solutions Steps

1. Create a boolean visited array of A x B which will be initialized with False.
2. Create a moves array of A x B which will store the number of moves required to reach there from the initial position.
3. Create a queue and push the knight’s starting position in it.
4. Mark the visited array corresponding to the knight’s location as True.
5. Now do the following until the queue is empty or the knight reaches the target location.

• Pop from the queue and store it in variable x .
• If x is the target location, return moves[x]
• Visit all the possible locations from the location x and increase the number of moves accordingly in the moves array.

Pseudo Code

int minStepToReachTarget(int A, int B, int C, int D, int E, int F)
{
    int dx[] = [ -2, -1, 1, 2, -2, -1, 1, 2 ]
    int dy[] = [ -1, -2, -2, -1, 1, 2, 2, 1 ]

    // queue for storing states of knight in board
    Queue q
    q.push([C, D])
    bool visited[A + 1][B + 1] = {false}
    visited[C][D] = true
    int moves[A + 1][B + 1] = {0}
    while (q is not empty) {
        x = q.pop();
        if (x[0] == E and x[1] == F)
            return moves[x[0]][x[1]]
        // loop for all reachable states
        for (int i = 0; i < 8; i++) {
            new_pos_x = x[0] + dx[i]
            new_pos_y = x[1] + dy[i]
            if (isInside(new_pos_x, new_pos_y, A, B) and !visited[new_pos_x][new_pos_y]) {
                visit[new_pos_x][new_pos_y] = true
                moves[new_pos_x][new_pos_y] = moves[x[0]][x[1]] + 1
                q.push([new_pos_x][new_pos_y])
            }
        }
    }
    // If all possible locations visited and no target location found
    return -1
}
// utility function
bool isInside(int x, int y, int A, int B) {
    if (x >= 1 && x <= A && y >= 1 && y <= B)
        return true
    return false
}

Complexity Analysis

Time Complexity: O(A.B)

Space Complexity: O(A.B)

where A and B are the dimensions of the board.

Critical Ideas To Think

• Why did we create dx and dy arrays?
• Why does BFS is chosen over DFS here?
• Read about a knight's tour from here to understand how the chessboard is assumed to be a graph and how come a knight can move to any different square from here.
• Can you think of some other approach to solve this problem? Think dynamic programming approach!

Suggested Problems To Solve

• Count of all possible ways to reach a target by a Knight
• Minimum steps to reach a destination
• N queen problem
• Can a knight visit all the squares of the board
• Surrounded Regions

Please comment down below if you have a better insight in the above approach.

Happy Coding, Enjoy Algorithms!
